Single-effect concentrator
Item No.：
001
Category:
evaporator
mechanical
PRODUCT DETAIL
Concentrator
Application
This evaporator can be operated in either vacuum or constant pressure condition. It can be used for concentration of water or organic solvent in many industries. It’s especially suitable for continuous concentration in vacuum condition to hot sensitive material (such as Chinese medicine, antibiotic, fermentation liquor, milk, juice and alcohol extracting solution).

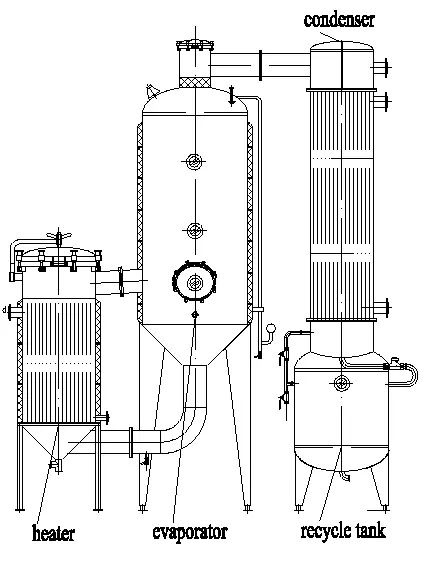

Structure Drawing
Structure
Heater, evaporator, condenser, recycle tank, vacuum pump, meters, valves and control box and so on.
Principle
First fill the liquid into evaporator , then heat this machine, the solvent will be evaporated and cooled by cooling water, then flow back to recycle tank.
Parameter
| Model | WZ-300 | WZ-500 | WZ-1000 | WZ-2000 | WZ-3000 | WZ-5000 |
| Evaporate （kg/h） | 300 | 500 | 1000 | 2000 | 3000 | 5000 |
| Volume （L） | 200 | 500 | 700 | 1000 | 2000 | 3000 |
| Work pressure (MPa） | ＜0.1 | |||||
| Concentration rate） | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 | 1.3 |
| Vacuum （MPa） | -0.08 | |||||
| Heat area（m2） | 5 | 8 | 15 | 30 | 45 | 65 |
| Dimension(m) | 2.2*0.8*2.6 | 2.7*0.9*3.5 | 3.2*0.9*3.8 | 3.6*1.3*4 | 3.6*1.4*4.5 | 4*1..6*6 |
Feature
1 the machine can be operated under vacuum, the vacuum degree can be -0.8 to -0.098Mpa
2 it can save energy 30% because it is operated under vacuum
3 there is no dead corner, so it is convenient to clean
4 the machine is completely, you just connect the electric, steam and cooling water,then you can operate the machine
5 the material of the machine is stainless steel and it is polished it is according to GMP standard.
6 the machine can be operated continuously.
Order requirement:
How much liter of solvent do you want to be evaporated per hour?
What way do you heat the machine? By electric or steam?
What is the original degree of the solvent?
What is the finished degree of the solvent do you want to get?
What is your raw material?
When do you need this machine?
