Extracting tank
Item No.：
20
PRODUCT DETAIL
This equipment is suitable for extracting the effective component and essential oil from Chinese herb and other botanical in pharmaceutical,foodstuff and chemical industry.
Feature
1.This equipment mainly is consist of extracting tank, external circulatingt concentrator and other accessory.It is with compact structure ,simple operation and combining extraction, concentration, solvent recycling together.
2.The whole process is in a airtight condition and finish extraction and concentration at one time completely.It can process big quantity material and with less slolvent ,short extracting time.
3.The temperature can be controlled freely in 48-100℃, so it can realize low temperature extraction,hot backflow, low temperature backflow and low temperature concentration.It is especially suitable for some heat-sensitivity material and can configure with the PLC control system.
Parameter
| Model | 0.5m3 | 1m3 | 2m3 | 3m3 | 4m3 | 6m3 | 8m3 | 10m3 |
| total volume（L） | 650 | 1200 | 2300 | 3300 | 4300 | 6400 | 8600 | 11000 |
| pressure in extractor （Mpa） | <0.1 | |||||||
| Pressure in jacket（Mpa） | 《0.3 | |||||||
| compressed air pressure （Mpa） | 0.6-0.7 | |||||||
| diameter of filling capacity （mm） | 350 | 400 | 400 | 400 | 400 | 450 | 500 | 500 |
| diameter of discharge door（mm） | 600 | 800 | 800 | 800 | 800 | 1000 | 1000 | 1000 |
| heat area（m2） | 2.7 | 3.6 | 5 | 6.5 | 7.5 | 10 | 12 | 14 |
| Condenser area（m2） | 3 | 4 | 5 | 8 | 6 | 8 | 12 | 15 |
| cool area （m2） | 0.5 | 0.5 | 1 | 1 | 1 | 1.5 | 1.6 | 1.5 |
| filter area（m2） | 0.25 | 0.25 | 0.25 | 0.25 | 0.35 | 0.5 | 0.5 | 0.8 |
| mix speed（r/min） | 25 | |||||||
| mixer power （kw） | 1.1 | 2.2 | 3 | 4 | 5.5 | 7.5 | 7.5 | 11 |
Finshed product
Order requirement
1 what is your raw material?
2 do you extract the raw material by water or alcohol or other solvent?
3 what is the last product do you want to get? liquid or paste or powder
4 what way do you heat the machine? by steam or electric ?

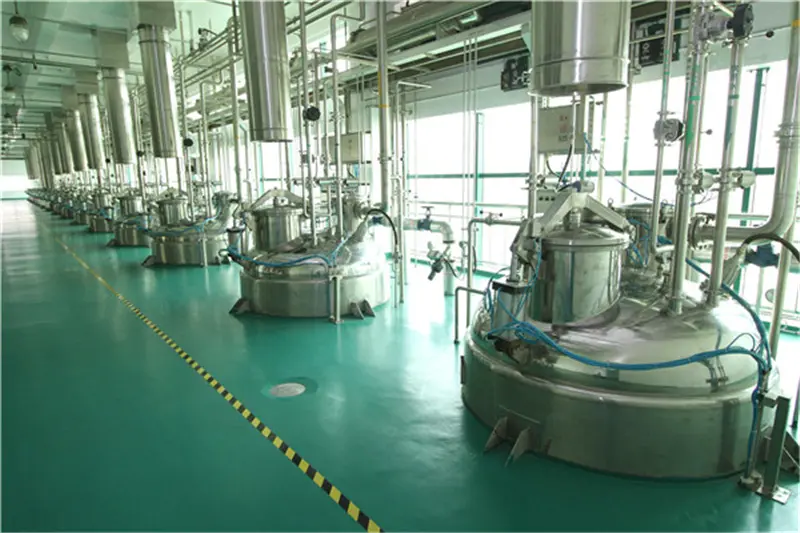

Install picture
