Lavender oil distiller
Item No.：
27
PRODUCT DETAIL
Essential oil distiller
Application
This essential oil distiller can distill the essential oil from flowers, leaves,roots, powder and so on, it also can extract component from herbs like senna, stevia, licorice and so on.

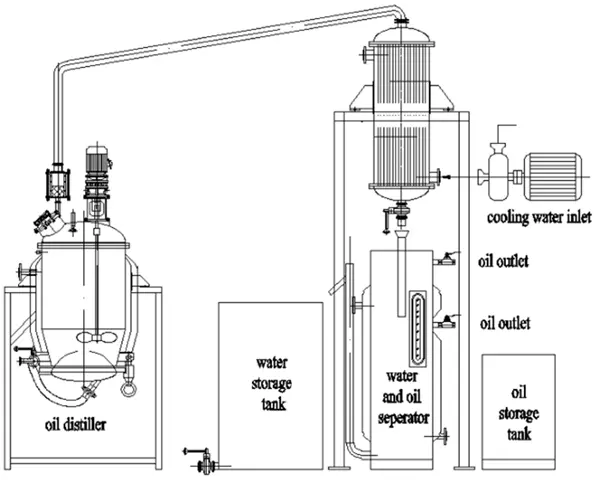

Structure Drawing
Structure
oil distiller, oil water separator,receiver, oil cooling system, plate distillation system Vacuum system, frame,Pipes,valves, digital temperature sensor.

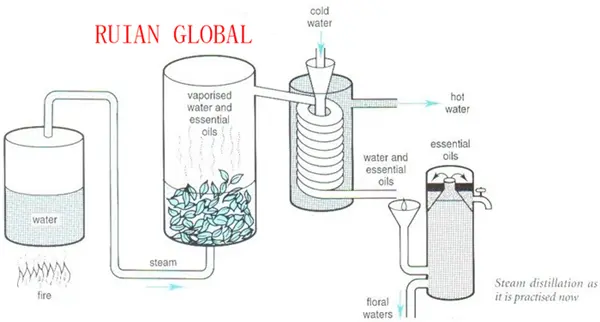

Principle
First you put the raw material into the extractor,
Then heat the steam boiler, the steam boiler produce the steam which will directly distill the raw material in the extractor, then the essential oil will come out from the herbs, flowers, leaves and so on, the essential oil and the steam will be cooled by condenser which flow back to wateroil seperator, the oil will flow to oil storage tank, the water will flow to water storage tank, and the water flow to steam boiler again, so it is circulation.
Character
1By steam-distillation to reach the extraction of essential oils.easy operation. One people can operate this machine easily .
2 it is heated by steam
3 Save energy: the steam from steam generator which directly distill the raw material, and the steam will be cooled by condenser, and seperate the water from oil from separator, the water can flow back to steam boiler again, so the purity water can be circulation.
4 All the machine have not dead corner, so it is good to clean and it is according GMP standard.
5 All surface of the machine is mirror polished, so it is looks very beautiful.
Parameter
| Model item | TQ100 | TQ500 | TQ1000 | TQ2000 | TQ3000 | TQ5000 | TQ10000 |
| Distill volume | 100 | 500 | 1000 | 2000 | 3000 | 5000 | 10000 |
| Working pressure in jacket | ＜0．2Mpa | ||||||
| Working pressure in pot | ＜0．1Mpa | ||||||
| Extract Temperature | 50-100（℃） | ||||||
| Heat Medium | Steam | ||||||
| Material | Stainless steel | ||||||
Order requirement
1 How much liter of this machine do you need?we have 50L 100L 200L 300L 500L 1000L .......10000L and so on
2 What is your raw material? Is it leaves, stem, Flower or root?
3 How much percent of the essential oil from the raw material?
4 When do you need this machine

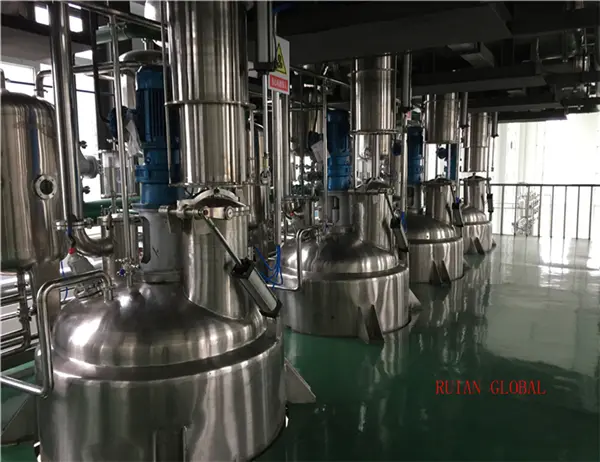

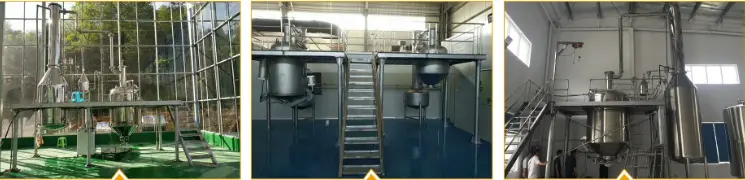

Installed project
MAIN PRODUCTS
Our company is a professional manufacturer of pharmaceutical, food, chemical industry equipment, our products include extraction equipment, stainless steel pressure vessel equipment, food additives and detergent fermentation system, liquid mixing system, food and chemical industry etc.
