Oral liquid filler
Item No.：
160
Category:
PRODUCT DETAIL

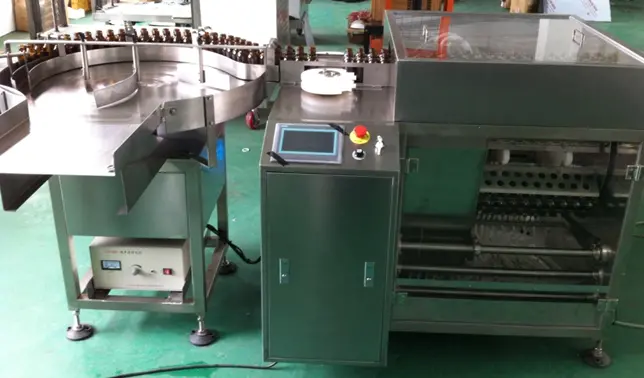

NO. 1 Bottle washing machine
Brief Introduction
1.Applied for all kinds of materials or irregular bottles from 60ml,100ml & 200ml ,which have bolder .the machine can wash the bottle inside and outside .
2.Adopt two times of water and one time of air to washing bottle(drinking water-WFI-purified compressed air and make bottle comply with requirement and dry .
Main Technical Parameters
| Customer Bottles | 60ml, 100ml & 200ml |
| Productive Capacity | 30-80bottles/min |
| Power Supply | 380V 50HZ |
| Power | 1.8KW |
| Water Consumption | 0.6-1t/h |
| Compressed Air | 15m³/h 0.3-0.4kg/cm³ |
| Net Weight | 500kg |
| Dimension | 1200(L)×1100(W)×1200(H) |
NO. 2 Automatic Filling +Capping Machine
Uses And Introduction
This machine is one of the traditional filling and capping equipment, advanced design, reasonable structure, can automatically complete filling and capping process, is suitable for the liquid ,such like perfume, syrup, tincture, alcohol,wine a variety of materials such as,and other functions. Can be used stand-alone, and also can be used for filling line. This machine completely accords with the new GMP requirements and EU certification.
Characteristic
The parts which contact liquid are SUS316L stainless steel and others are SUS304 stainless steel
It has intuitive and convenient operation, measuring accurate, positioning precision
Three knife centrifugal sealing, to ensure the sealing strong and beautiful
Fully in accordance with the GMP standard production

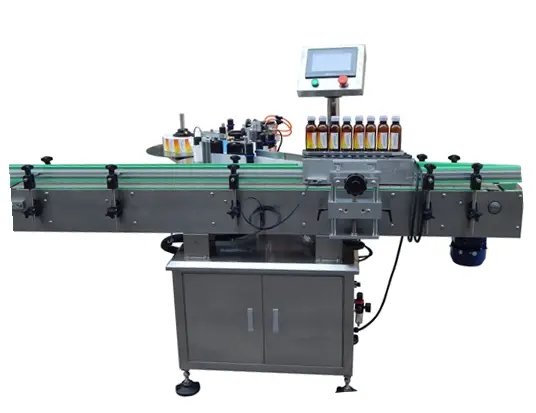

NO. 3 CX-LT Automatic Labeling Machine
Application
widely used in medicine, food, beverage and other industries in the cylindrical object or the week half cycle of the automatic labeling requirements.
Function characteristics
1.Intelligent control, automatic photoelectric tracking, have any label, no standard automatic correction and label automatic detection function, prevent leakage and labels to waste
2.High stability, PLC + Touch screen +Servo motor and advanced electronic control system of electric eye, 7 x 24 hours support equipment operation
3.Easy adjustment,labeling speed, transmission speed, bottle can realize stepless speed regulation, according to the need to adjust
4.Main material is made of stainless steel equipment and advanced aluminum alloy manufacturing, comply with GMP requirement
Main technical Parameters
| Voltage | AC110/220V, 50/60HZ |
| Labeling Speed | 20-100pcs/min |
| Object Size | 30-280 mm (H), 20-150 mm (W) |
| Label Size | 25-300 mm (L), 20-180 mm (W) |
| Driving Mode | Servo motor |
| Labeling Accuracy | ±1mm (depend on the evenness of the plane) |
| Printer to use air | 5kg/cm2 |
| Roll Size | Φ76 mm,Φ300 mm |
| Dimension | 2000 mm(L)×1000mm(W)×1360mm(H) |

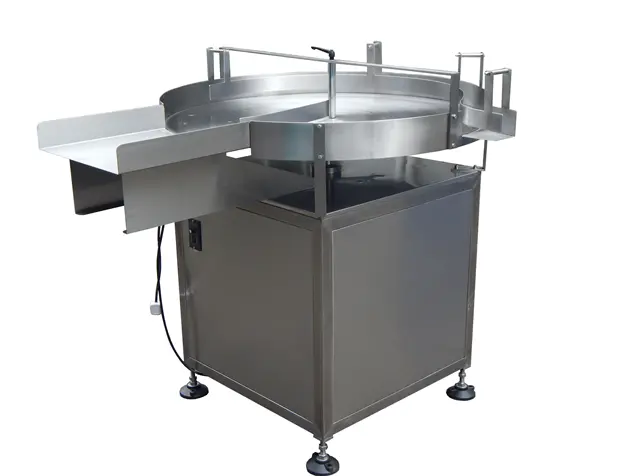

NO. 4 CX-GP Automatic bottle turntable
Introduction
This unscramble bottle machine is the artificial bottles in the round table, wheel rotation will have to dial the conveyor belt into the bottle, into the filling machine for filling. Easy to use, simple operation is one of the indispensable link
Related equipment: the following equipment can be selected, can form unscramble
bottle-filling-capping-labeling-the production line
| Applicable specifications | 20-1000 ml |
| Bottle diameter | 900mm |
| Production capacity | 0-80 BPM (speed adjustable) |
| Voltage | 220 v50hz |
| Power | 0.5 kw |
| Weight | 100kg |
| Machine size | 1300*1000*1300mm |
| Stainless steel | SUS304 material |
MAIN PRODUCTS
Our company is a professional manufacturer of pharmaceutical, food, chemical industry equipment, our products include extraction equipment, stainless steel pressure vessel equipment, food additives and detergent fermentation system, liquid mixing system, food and chemical industry etc.
