PRODUCT DETAIL
liquid forming and sealing machine
Application
Oral liquid, liquid, pesticide, perfume, cosmetics, fruit pulp, olive oil,essential oil , honey etc..
Working process
Take out the film; Plastic bottle-forming, filling, date printing, sealing and cutting can be completed automatically.
Description
This is the most advanced Type Suppository Filling and Sealing Machine in China. The machine is suitable for any kinds of material, such as PVC laminated by PE, PVC laminated by LDPE. It can be filled by Liquid, Honey, Semi Liquid, etc.
Feature
1.Controlled bu PLC，the frequency conversion in finitly variable speeds。
2.All6 processes from spreading roll，AMP bottle forming，sealing the dne，printing serial numbers，cutting the end，cutting apart，controlled by programming。
3.The computer human interface has simple and clear operation.
4.The filling head doesn’t drop.leak,riding bubbled and spill over.
5.All are made of high-quality stainless steel,accord with the standard GMP.
6.Mostly pneumatic components and wiring adopt inward fitting.
7.Automatic and mechanical bottling,precise calculation and limited deflectiom.
Parameter
| Model | GGS-130 P5 | |
| Max. Forming Depth | 12mm | |
| Cutting Speed | 0-25 times | |
| Packing Material | PVC/PET combined sheet X240mm(thickness:0.2-0.4mm) | |
| Filling Volume | 1-50ml | |
| Power Supply | 7kw 380V 50-60HZ | |
| (can be customized) | ||
| Machine Weight | 900kg | |
| Machine Dimension | 23000*850*1500mm | |
| Model | GGS-118 P2 (2 filling heads) | GGS-118 P5 (5 filling heads) |
| Max. Forming Depth | 12mm | 12mm |
| Cutting Speed | 0-25 times | 0-25 times |
| Packing Material | PVC/PET combined sheet | PVC/PET combined sheet X120mm(thickness:0.2-0.4mm) |
| X120mm(thickness:0.2-0.4mm) | ||
| Filling Volume | 1-50ml | 1-50ml |
| Power Supply | 3.5kw 220V/380V 50-60HZ | 4.5kw 220V/380V 50-60HZ |
| (can be customized) | (can be customized ) | |
| Machine Weight | 550kg | 750kg |
| Machine Dimension | 1800*800*1400mm | 2300*900*1500mm |
| Model | GGS-240 P5 (5 filling heads) | GGS-240 P10 (10 filling heads) |
| Max. Forming Depth | 12mm | 12mm |
| Cutting Speed | 0-25 times | 0-20 times |
| Packing Material | PVC/PET combined sheet X240mm(thickness:0.2-0.4mm) | PVC/PET combined sheet X240mm(thickness:0.2-0.4mm) |
| Filling Volume | 1-50ml | 1-50ml |
| Power Supply | 6.5kw 380V 50-60HZ | 8kw 380V 50-60HZ |
| (can be customized) | (can be customized ) | |
| Machine Weight | 1200kg | 2000kg |
| Machine Dimension | 3200*850*1400mm | 5000*850*1400mm |

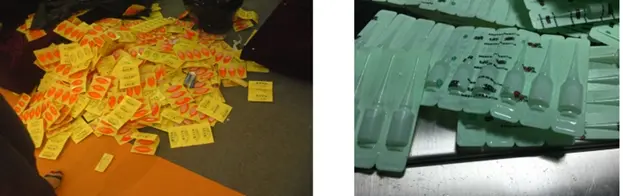

Sample picture
